Effisus Vapour FR System

A1 Class Fire Rated Weatherproofing Vapour Barrier (VCL)

The Effisus Vapour FR System is fire rated as Class A2-s1,d0 according to EN13501-1, having obtained the final fire classification with Effisus accessories (tapes and adhesives) tested as a system.

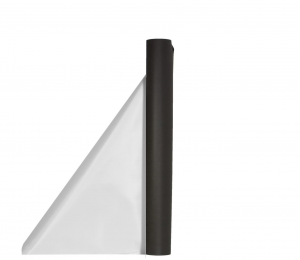

The Effisus Vapour FR Membrane is a high quality and multifunctional weatherproofing vapour barrier made of a special fiberglass technology with an aluminum foil, developed to achieve a fire reaction Class A1 in accordance with EN13501-1.

Works as a vapour control layer (VCL) protecting the building from condensation risk and improving the airtightness and consequently the energy efficiency.



Effisus Vapour FR Membrane can be used in facade rainscreen cladding, curtain walls and many other applications to protect the insulation and building interior from water, heat radiation and moisture transfer. It also works as a fire retardant layer in constructions.

Why should you choose Effisus Vapour FR System?

Efficiency

  • Fire reaction: Class A2-s1,d0 in accordance with EN 13501-1;
  • Watertight
  • Water Vapour diffusion tight (closed joints)
  • Airtight
  • Windtight
  • Integrated component of the Effisus EcofacadeSystem

Sustainability

  • High impact on building longevity
  • Promotes indoor air quality and user health
  • Reduced maintenance needs
  • Recyclable Membranes
  • Non-solvent accessories
  • Reduction of wastes by customizing solutions

Effisus Vapour FR System – Fire Resistance Waterproofing Vapour Membrane

Typical Applications

Effisus Vapour FR

Effisus Vapour FR

  • Vapour Control Layer Membrane (VCL)
  • Rainscreen cladding
  • Interfaces in ventilated facades
  • Interfaces in curtain walls
  • Interfaces in traditional facades
  • Interfaces in pre-fabricated facades

Solution benefits

  • Fire protection – Class A2-s1, d0 according to EN13501-1, tested with Effisus accessories.
  • Multifunction – 100% water, vapour and wind tight.
  • Resistant – High mechanical resistance and resistance to high and low temperature.
  • Complete system – Complete range of accessories for any project need.
  • Energy Efficiency – The airtightness of the membrane improves the air quality in the building interior, durability of all the facade components and avoid condensation risk.

Technical Characteristics

Testing Method  Results
Reaction to fire – EN13501-1 Class A2-s1, d0
Sd value – EN 1931 >1500 m
Vapour resistivity – EN 1931 >7500 MNs/g
Water penetration – EN 1928 W1
Tensile strength (MD / XD) – EN 12311-1 700 / 400 N/50mm

Supporting Information

Technical Sheet System – Hot Climates

Technical Sheet System – Cold Climates

Guidance Fire – Hot Climates

Guidance Fire – Cold Climates

Certifications

System accessories

Effisus 2Adjoin DF Tape

Double sided adhesive tape for fastening breather membranes to the facade structure

Effisus 2Bond DS

Solução para selagem entre superfícies ou selagem de perfurações

Effisus Bonding KF+P Adhesive

Solvent free adhesive for Effisus Ecofacade Membranes
