Project Description

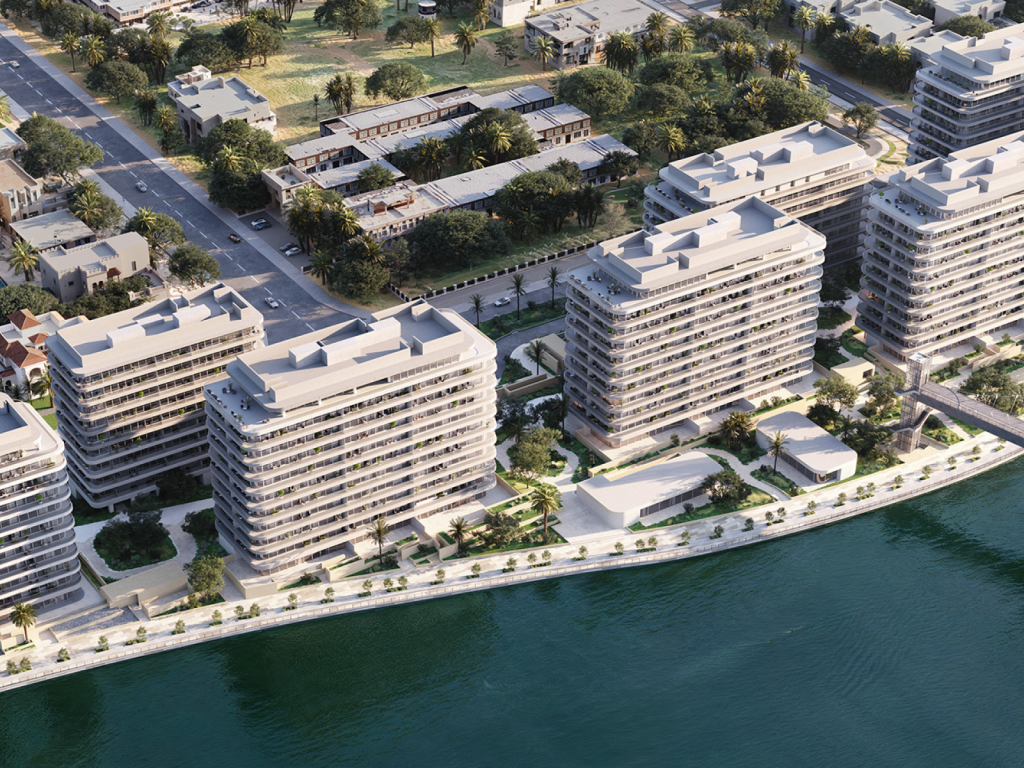

Eden House – The Park is a premium residential development currently under construction in Dubai.
For façade vapour control projects in Dubai, the combination of high external temperatures, humidity and highly conditioned interiors creates specific challenges for the building envelope. At Eden House – The Park, effective vapour management therefore forms an important part of the façade performance strategy.

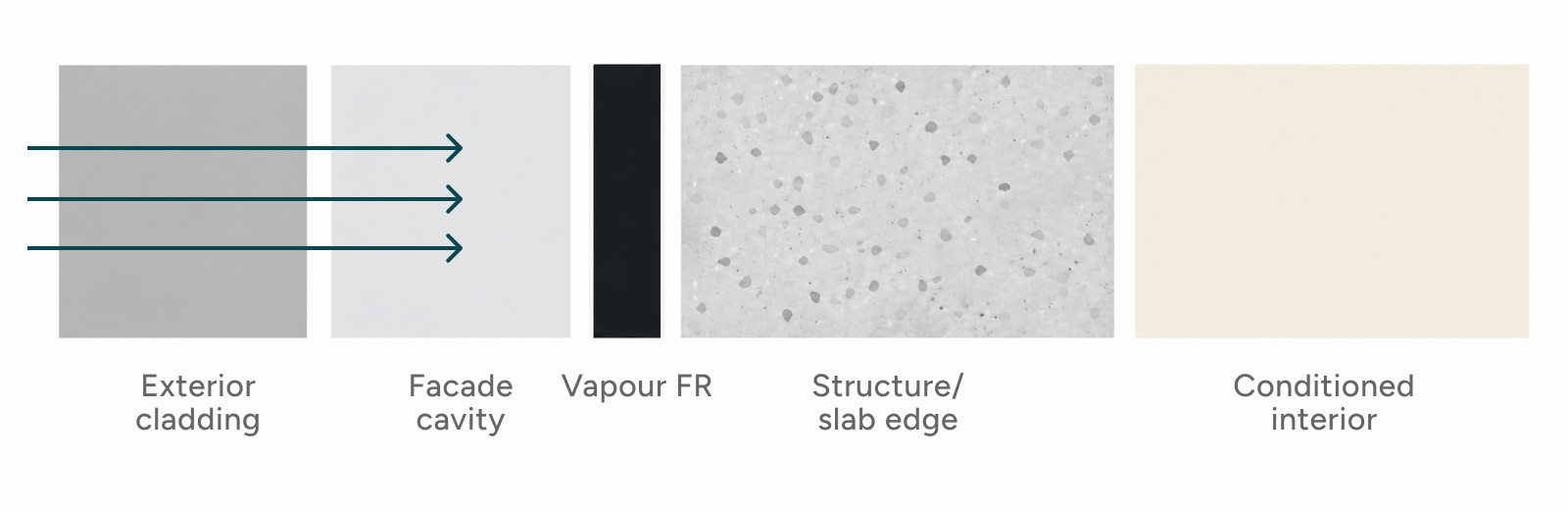

Moisture-laden external air can move towards the cooler, air-conditioned interior. If water vapour travels through the façade build-up and reaches colder surfaces, there is a risk of condensation forming within the construction.
To address this challenge, Effisus Vapour FR Class A1 was selected to provide a continuous fire-rated air and vapour control layer across critical façade interfaces. The system is applied at slab edges, perimeters and transitions, helping control vapour migration, support airtightness and contribute to the long-term performance of the building envelope.
Project Challenges
Managing Vapour in Dubai’s Hot and Humid Climate
The key challenge at Eden House – The Park was not simply protecting the building from external water. It was also managing water vapour moving through the façade build-up. In Dubai’s hot and humid climate, the difference between the external environment and the cooler conditioned interior can create significant vapour pressure across the building envelope.
Without effective vapour control, moisture can migrate into the façade construction and increase the risk of interstitial condensation.
The façade therefore required a solution capable of:
· Restricting vapour migration through the façade build-up
· Reducing the risk of interstitial condensation
· Maintaining continuity across slab edges, perimeters and transitions
· Supporting façade airtightness
· Protecting insulation and internal finishes
· Meeting demanding fire-performance requirements
· Supporting the long-term durability of the building envelope
Continuity was particularly important. Even when the primary membrane performs effectively, gaps or inconsistencies at interfaces can create weak points within the overall air and vapour control layer.
Effisus Solutions

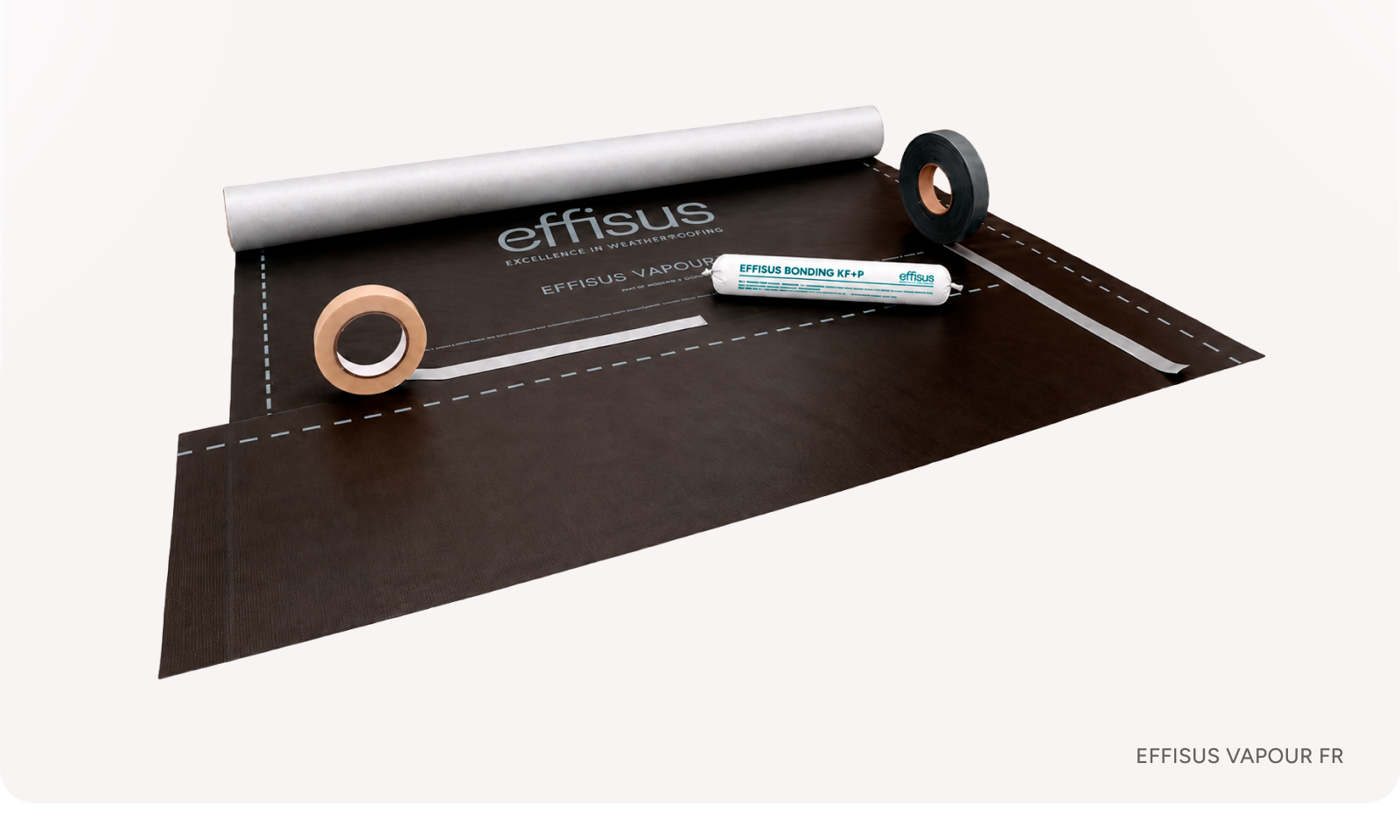

Effisus Vapour FR for Façade Vapour Control

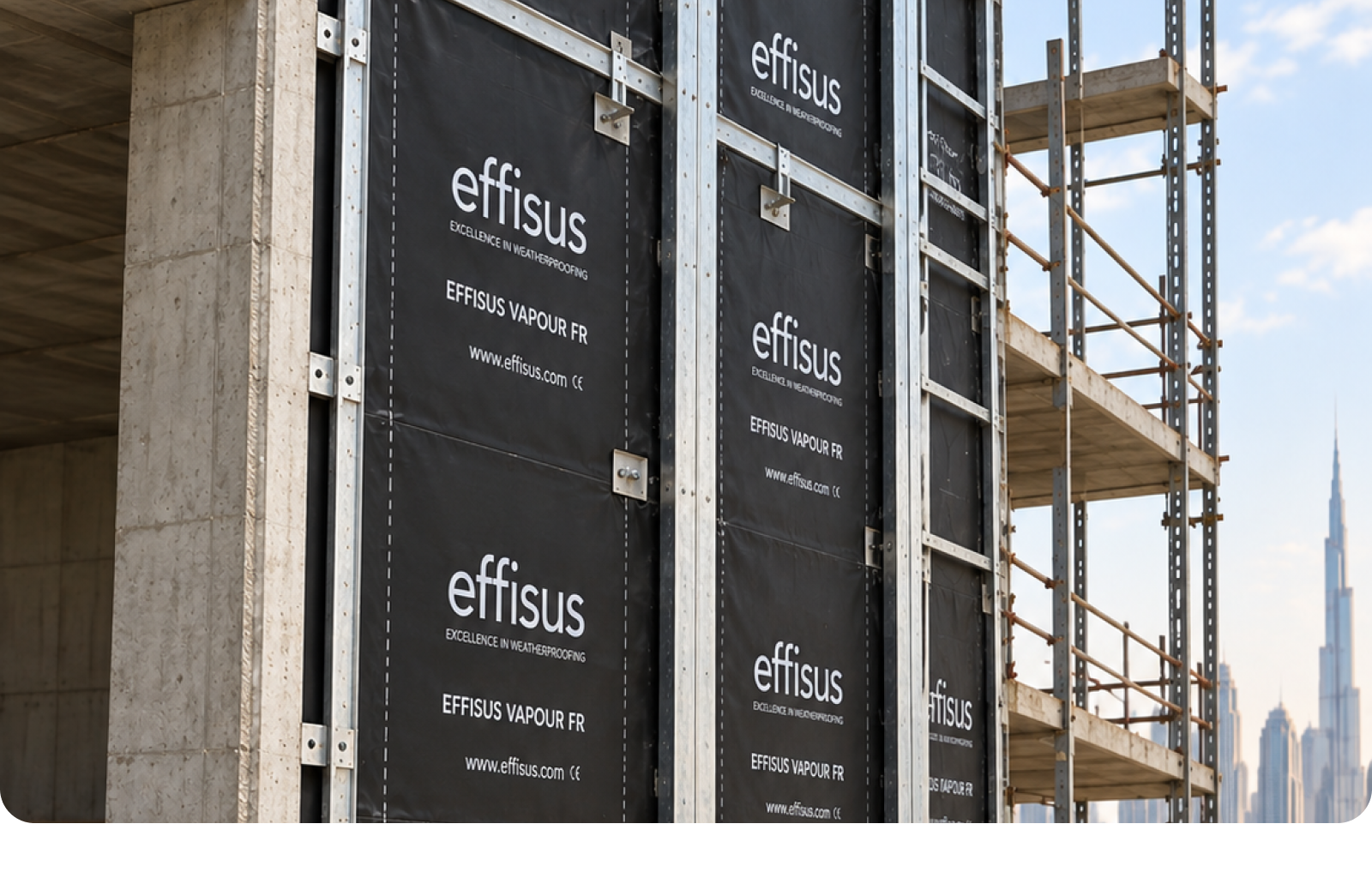

Effisus Vapour FR Class A1 was selected to create a continuous air and vapour control layer within the façade build-up. The membrane provides very high resistance to water vapour diffusion, with an Sd value greater than 1500 m, helping significantly restrict moisture movement through the façade construction.
At Eden House – The Park, the membrane is applied across critical interfaces, including slab edges, perimeters and transitions. These areas are particularly important because breaks in the vapour-control layer can create uncontrolled paths for humid air and moisture. The solution also contributes to the airtightness of the building envelope, helping minimise uncontrolled air leakage through the façade.
Its Class A1 reaction to fire also enables vapour control to be incorporated into façade designs with demanding fire-performance requirements.
The result is a system designed to manage vapour, support airtightness and maintain continuity across the complete façade build-up.
Why Façade Continuity Matters
An air and vapour control layer can only perform effectively when it remains continuous. Modern façades incorporate multiple materials, components and interfaces. Slab edges, perimeters, corners and transitions can therefore become potential weak points if they are not detailed correctly.
At Eden House – The Park, particular attention is given to maintaining continuity between the different elements of the façade construction. This helps reduce uncontrolled air and vapour movement into the façade build-up and supports the performance of the building envelope as one complete system. For façade vapour control applications in Dubai, this continuity is particularly important because of the significant difference between the external climate and the conditioned internal environment.
The Effisus Team Approach
Effisus approaches façade weatherproofing by considering the performance of the complete building envelope rather than focusing solely on individual products.
At Eden House – The Park, the objective was to provide an air and vapour control solution suited to Dubai’s climatic conditions while ensuring that it could be integrated continuously across critical façade interfaces. Particular attention was given to areas such as slab edges, perimeters and transitions, where different construction elements meet.
The system combines the primary membrane with compatible bonding and sealing solutions, helping maintain the continuity required for reliable long-term performance. This system-based approach helps ensure that vapour control, airtightness, fire performance and interface detailing are considered together.
Our Added Value
At Eden House – The Park, the Effisus solution contributes to five key areas of façade performance.
1. Vapour Control
The high vapour resistance of Effisus Vapour FR helps restrict moisture migration through the façade build-up and supports the management of condensation risk.
2. Airtightness and Energy Performance
By contributing to a continuous airtight layer, the system helps minimise uncontrolled air leakage through the building envelope.
This is particularly important for highly conditioned buildings in Dubai, where the difference between exterior and interior conditions can be significant.
3. Fire-Conscious Façade Design
Effisus Vapour FR achieves Class A1 reaction to fire, allowing effective vapour control to be incorporated into façade systems with demanding fire-performance requirements.
4. Long-Term Durability
Controlling vapour movement helps protect insulation, interfaces and internal finishes from moisture-related deterioration, supporting the durability of the building envelope.
5. Reliable Façade Detailing
Compatible bonding and sealing accessories help maintain continuity at slab edges, perimeters and transitions, where façade performance can otherwise be compromised.
Performance Beyond the Visible Façade
Once completed, the vapour-control layer will sit out of sight within the façade, while continuing to support the building’s performance over time.
At Eden House – The Park, the solution helps manage moisture movement, support airtightness and protect critical façade interfaces in Dubai’s demanding climate. The project highlights the importance of combining the right materials with careful detailing to achieve a robust and reliable building envelope.
Effisus works with project teams to deliver façade solutions designed for long-term performance, durability and protection. To learn more about Effisus façade vapour control, airtightness solutions and on-site technical support, contact our team at [email protected].
Project Details
Project Types:
New Build
Project Segment:
Residential
Application Segment:
Facade
Application Type:
