Effisus Bolt Protect 

Permanent Sealing for Metal Roof Bolt Holes

Metal roofing typically implies the use of several self-drilling screws, and these are potential water ingress spots, even when these fixings have a sealing washer. Effisus Bolt Protect is an easy to install long-lasting solution that comprehensively mitigates all water leakage risks.

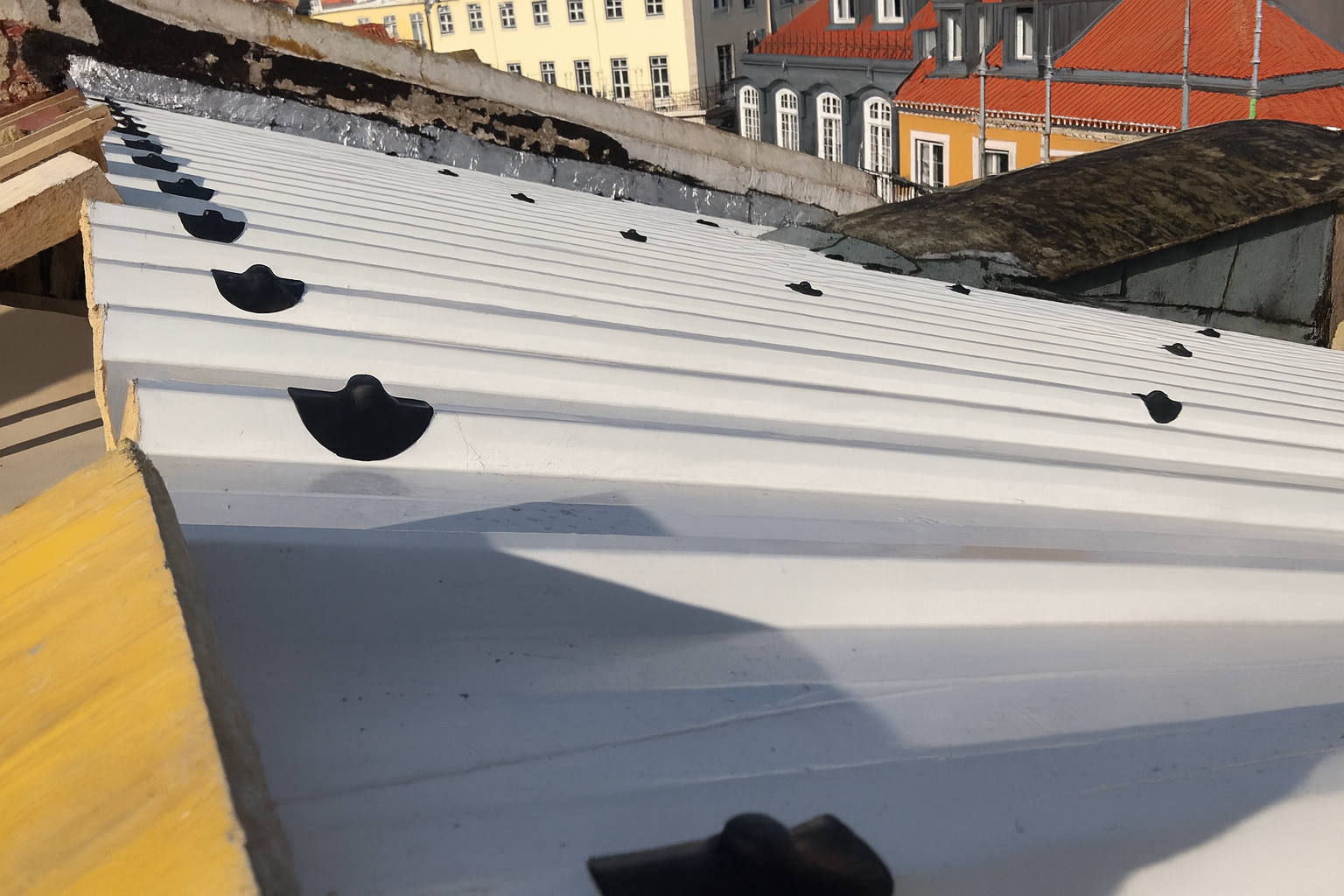

Corroded fastener

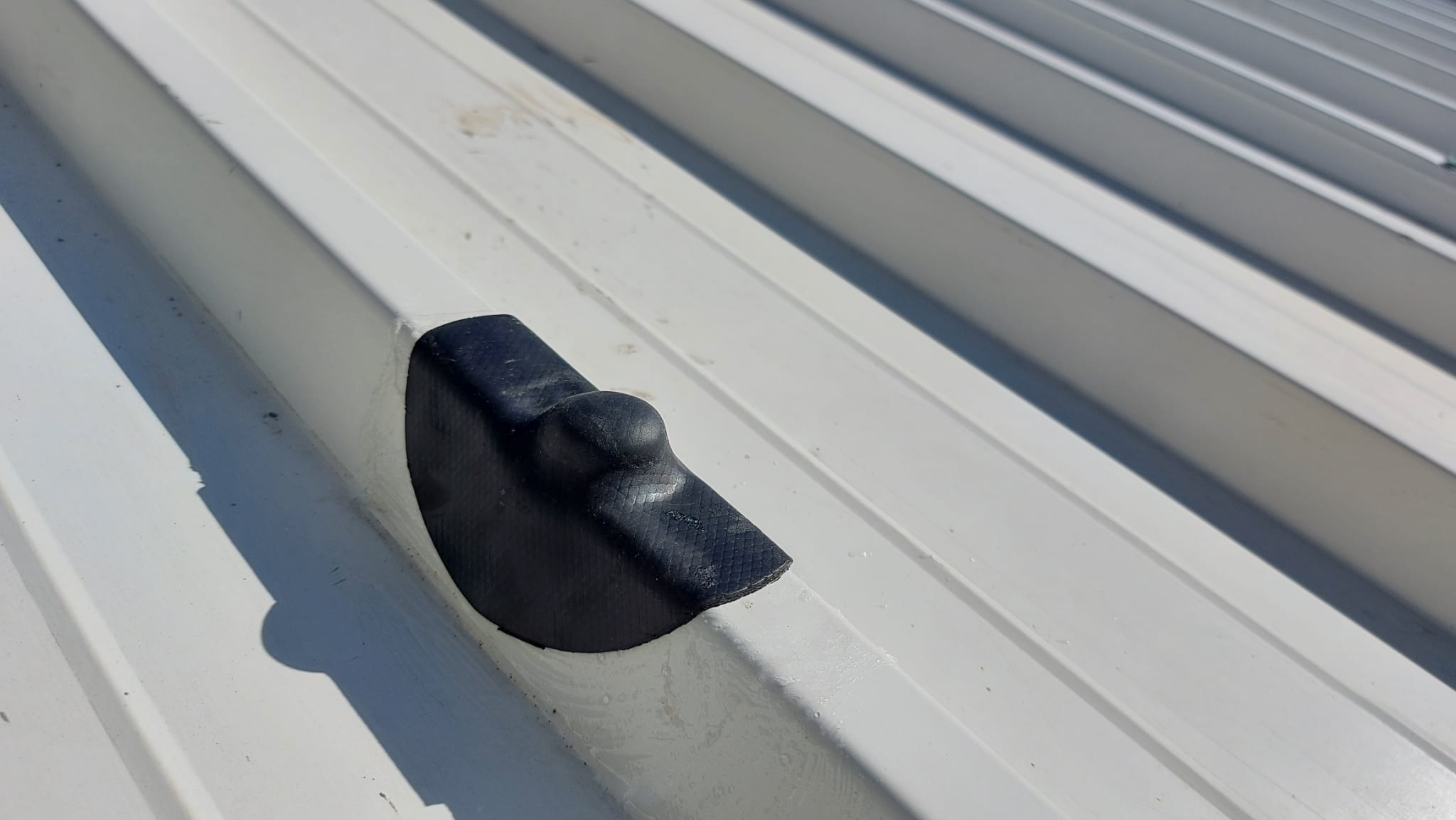

Loose bolt

These are potential water ingress spots, even when these fixings have a sealing washer.

Due to the high variance in the screw’s installation, some are torqued too lightly, some too hard, some over inclined, all leading to potential seal breaches. This is aggravated by structural movements, differential thermal expansion and over time screw corrosion and washer degradation. Moreover, in the case roofs are accessed for maintenance, stepping on the bolts will almost instantly promote a risk for water ingress.

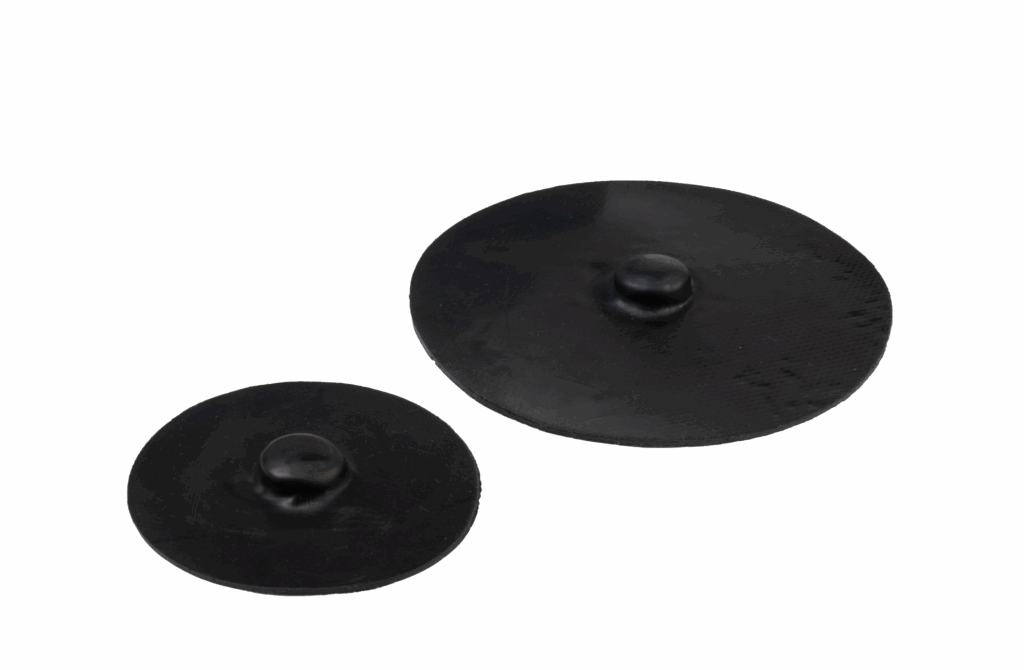

Where traditional repairs are often temporary, Effisus Bolt Protect is an easy to install long-lasting solution that comprehensively mitigates all water leakage risks and reduces corrosion development around the screw. Its high-elastic membrane and specialized rubber capsule create a perfect fit around each screw, resisting to UV exposure and low/high temperatures.

For a comprehensive offering against water intrusion in metal roofing, Effisus Bond FT answers metal roof flashings or edge trims and Effisus AllTiteGutter and Effisus TiteGutter3 are highly differentiated solutions for gutters.

PropertyStandardValue
Material EPDM
Colour Black
DimensionØ 100mm, Ø 150mm
Tensile Strength (uncured)ASTM D 412 Die C 250 psi max.
Ozone ResistanceASTM D 1149No Cracking
Peel StrengthASTM D 41310 pli @ 70ºF
Brittleness TemperatureASTM D 2137-45ºC
Service TemperatureASTM D 3359-40 ºC to 93ºC
Technical Data Sheet
Installation Manual
